ETFE plastic extruder screw design series for workshop

Precision medical catheter extrusion line with S304 stainless steel frame,consists of extrusion machine,extrusion mold,vacuum forming sink，servo traction cutter machine and conveyor,and it also equip pressure sensor,gear pump and outer diameter measuring instrument to control extrusion pressure in order to improve product accuracy and achieve automatic production.It can simultaneously achieve high-speed and high-precision requirements for customers and also increase productivity and save costs.Widely used in the extrusion of medical catheters such as TPU,TPE,PVC,PA,PP,PE,PEBEX,Teflon.

Model	L/D	Power KW/hr	Capacity Kg/hr
SANSJ-Ø20	25:1/28:1/30:1
SANSJ-Ø25	28:1/30:1	3.5	3~10
SANSJ-Ø30	28:1/30:1	5	4~15
SANSJ-Ø35	28:1/30:1	6	6~18
SANSJ-Ø45	28:1/30:1
SANSJ-Ø50	28:1/30:1
SANSJ-Ø55	28:1/30:1
SANSJ-Ø65	28:1/30:1
SANSJ-Ø65	28:1/30:1

Product details

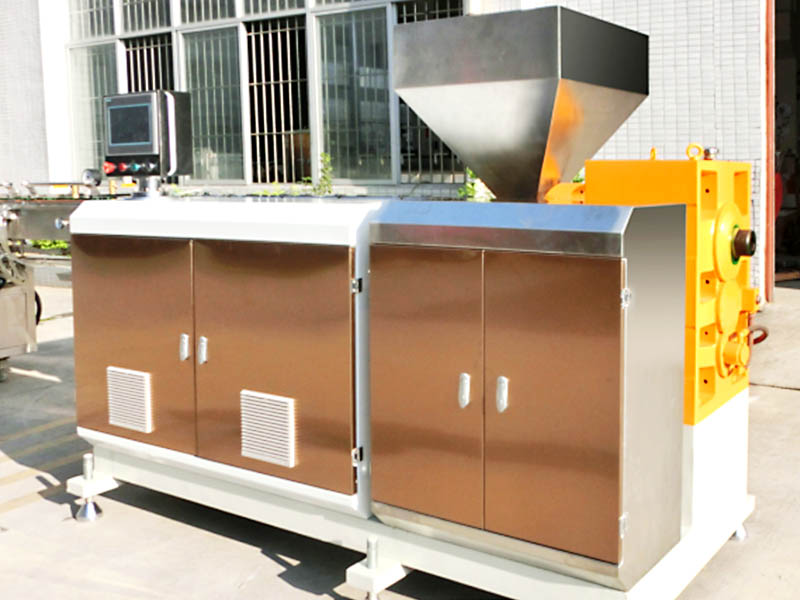

Precision extrusion machine, all stainless steel frame, servo motor direct connection structure to improve transmission stability and save production space.

ETFE plastic extruder screw design series for workshop-1

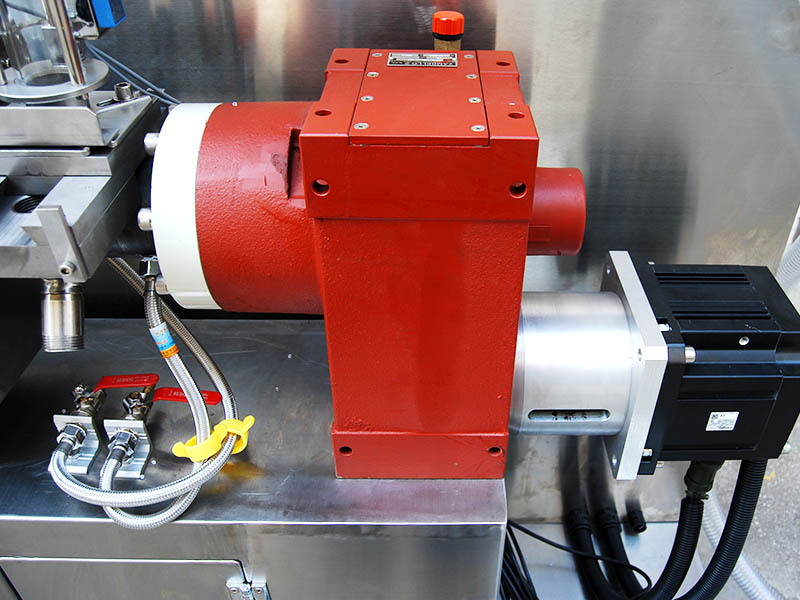

Choosing the original imported Zambello reducer from Italy to increase transmission stability and product accuracy.

ETFE plastic extruder screw design series for workshop-2

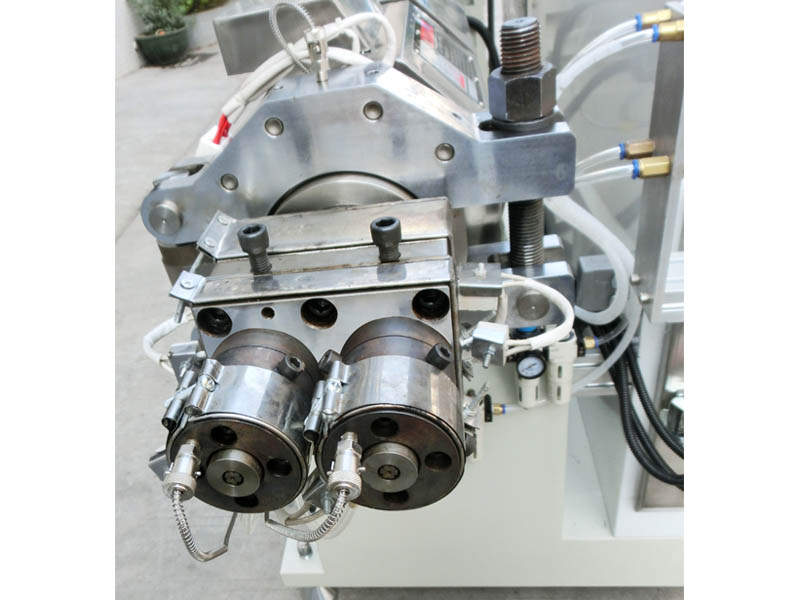

One out of one and one out of two mold,increase extrusion speed and improve productivity.
All stainless steel double-layer sink to prevent condensation on the surface of the sink during low temperature production

ETFE plastic extruder screw design series for workshop-3

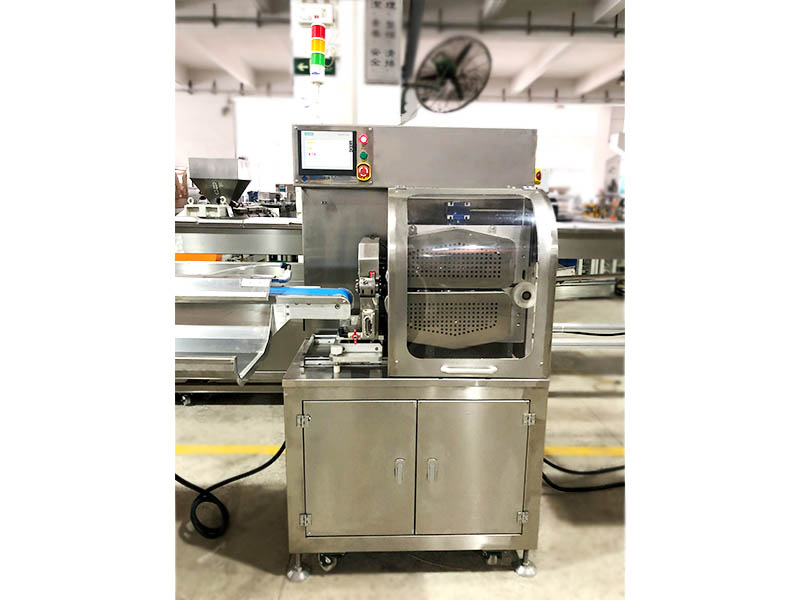

All stainless steel servo drive traction cutting machine to improve traction stability and cutting precision

ETFE plastic extruder screw design series for workshop-4

Product Application

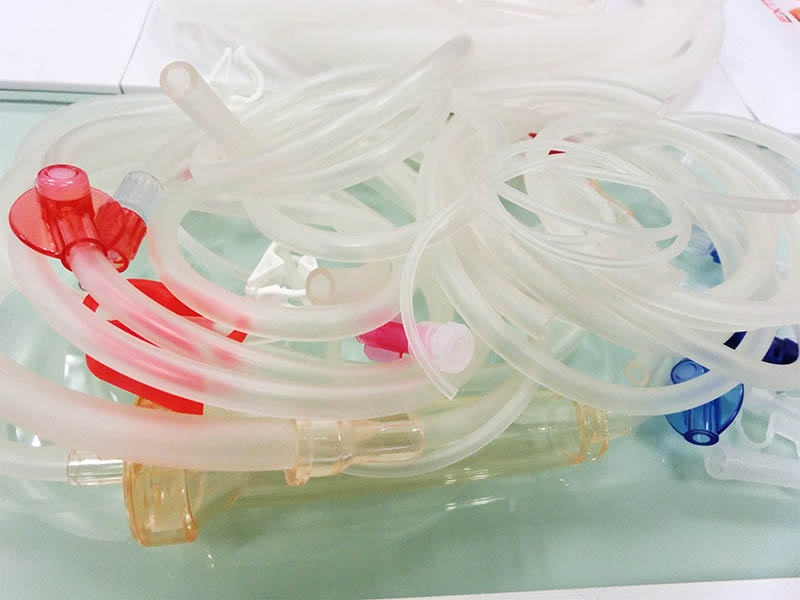

Extrusion of hemodialysis tube

ETFE plastic extruder screw design series for workshop-5

ETFE plastic extruder screw design series for workshop-6

ETFE plastic extruder screw design series for workshop-7
