Sheng'an started to produce high temperature fluoroplastic extrusion equipment in 2009. This series of equipment adoptsscrews and barrels made of high temperature and corrosionresistant steel imported from Germany, and servo-drivenclosed-loop control system that responds quickly to the meltpressure, in order to ensure the high efficiency and stableproduction, and to save the production energy and cost forthe customers. The extrusion line of PFA tube meets therequirements of ultra-clean tubes used in semiconductorindustry, and has won wide trust and recognition fromcustomers in China, Japan, and the United States.

Fluoroplastic Production Line

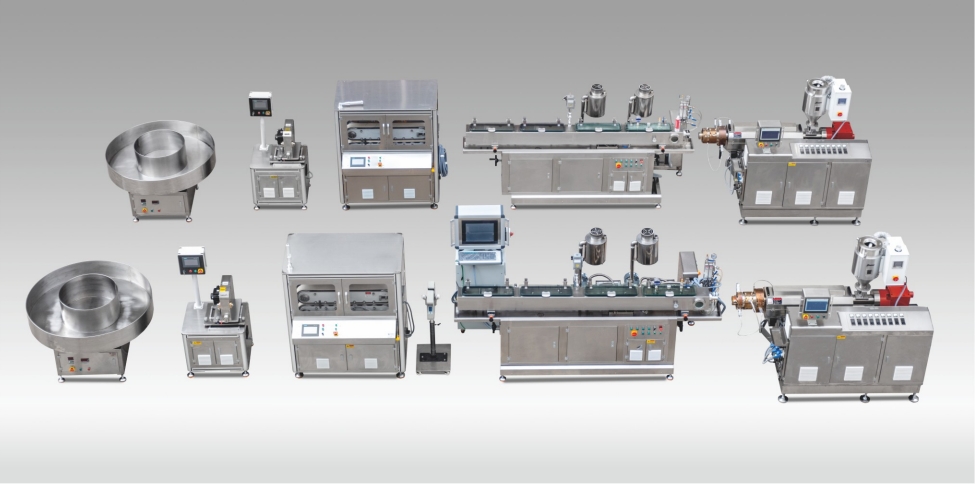

PFA Ultra-clean Tube Precision Extrusion Line

Optional ultrasonic wall thickness measurement + outer diameter measurement +industrial control machine real-time controlling of product accuracy online.

Equipment Introduction

This series of equipment adopts German original imported high precision, hightemperature and corrosion resistant material screw barrel and mold to satisfy theperformance of ultra-clean tube (high purity tube), in the production of 100 level'sclean room can meet the requirements of SEMl standard. it is widely applied invarious fields of ultra-high purity fluid delivery, such as semiconductors, ultra-purefluid chemicals, LCD panel manufacturing and solar energy equipment and otherfields.

PARAMETER

DETAILS

EQUIPMENT MODEL	SCREW DIAMETER & L/D	APPLICABLE DIAMETER (MM)	MACHINE SIZE (L/W/H, MM)
SANGW40	Φ45*25D	3-10	L9.5W2.5H2.28
SANGW50	Φ55*25D	10-25	L11.5W2.5H2.28
SANGW65	Φ65*25D	20-80	L12.5W2.5H2.28
SANGW80	Φ80*25D	50-150	L14.5W2.5H2.28

Precision Heat Shrinkable Tube Extrusion Line

Brief Introduction

Custom design

This series of equipment adopts German original imported highprecision, high temperature and corrosion resistant material screwbarrel and mold to meet the long-term extrusion of fluorine plasticperformance, which for the diameter of the tube within 2-5mmcontrol error of plus or minus of 0.01-0.03mm.

Application

Custom design

It is widely applied in the medical equipment with fluorine resintubes, including FEP, PFA tubes; FEP, PFA, PEEK heat-shrinkingtubes, develop tubes, the tearable tubes and so on.

High Temperature Fluorine Plastic Bar Extrusion Line

This series of equipment adopts high precision, high temperature and corrosionresistant material screw barrel and mold to satisfy the long-term extrusion of fluorineplastic performance, and adopts the one out of one, one out of two, one out of four,one out of six or one out of various heads of the bar special extrusion which.

Suitable for: PVDF, PCTFE extruding process, The replacement of the pipe special dieand then configured for PVDF, PCTFE single-lumen tube extrusion.
