Medical Bellows (Respiratory) Extrusion Line

Main configuration:
Single-screw extruder (if production double D corrugated pipe requires anadditional 30 extrusion auxiliary machine)
Extrusion mould for corrugated pipe or flexible bellowsCorrugated pipe orflexible bellows forming module group
Formingequipment
Tube shrinkingmachine (for flexible bellows)
On-line leak detection device
On-line cuttingmachine (optional)

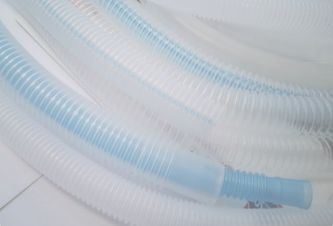

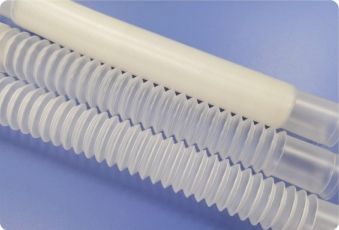

Applicable materials: PVC,PP, PE, EVA&PEEK breathing tubes: corrugated pipe , double D corrugated pipe and Fluoroplastic corrugated pipe

Note: Forthe production of double-D corrugated pipes, an additional 30 extrusion auxiliary machine is needed; when producing fluoroplastic corrugated pipes, the materials of the screw, barrel and mold all need high-temperature-resistant imported steel.
Features:
lt is formed at one time through the corresponding forming module group, the inside and outside are smooth, and the corrugation is uniform.
The forming machine can be equipped with water-cooled orair-cooled to improve product output and quality.
