Precision Central Venous Catheter Production Line

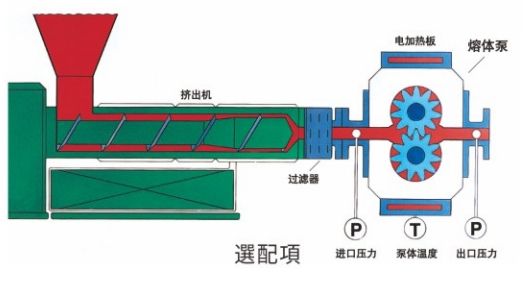

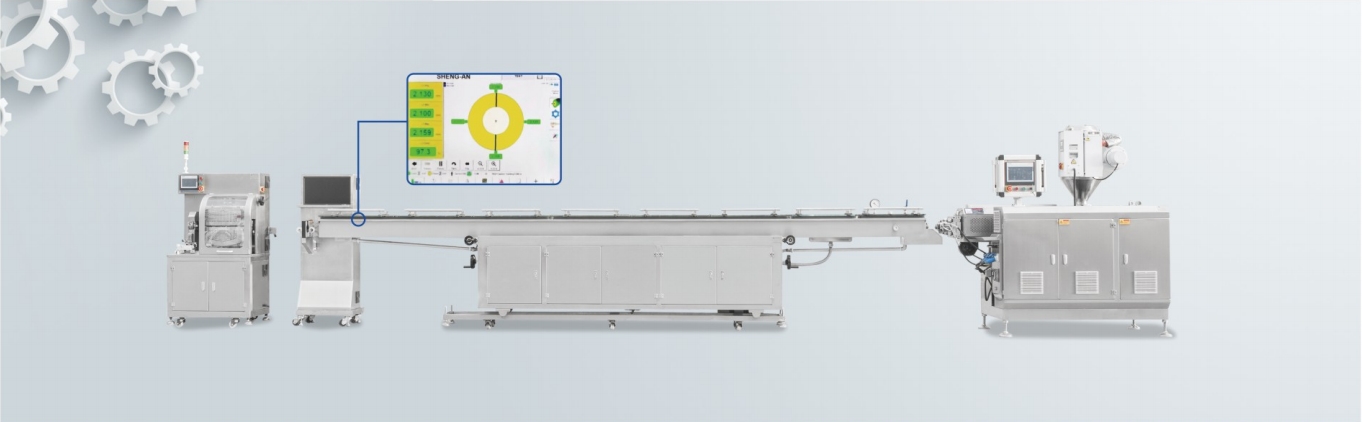

This series of high precision extrusion equipment consists of extrusion main machine,import (domestic) melt gear metering pump (optional), extrusion die, high stable vacuum forming cooling tank and precision servo haul-off and cutting machine and conveyor.Customer can choose imported closed-loop system to control stability of the complete unit.

This series of high precision extrusion equipment consists ofextrusion main machine, import (domestic) melt gear metering pump (optional), extrusion die, high stable vacuumforming cooling tank and precision servo haul-off and cutting machine and conveyor. Customer can choose imported closed-loop system to control stability ofthe completeunit.

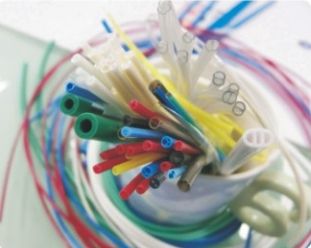

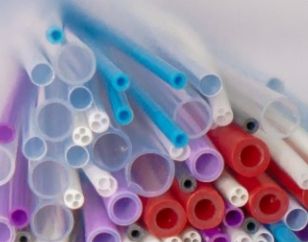

Applicable materials: PEBAX,PA (Nylon, Modified nylon)、 PP and PE、 PE + BaS04; Teflon and other materials for medical application.

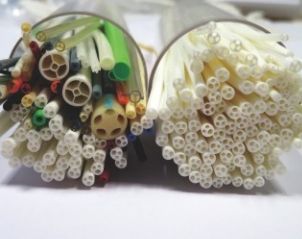

Applicable tube diameter and margin of tolerance: outside diameter: 0.3-8mm; dimensional tolerance ofoutside diameter: +/-0.01,+/-0.02,+/-0.05mm; wall thickness: 0.05-2.5mm.
