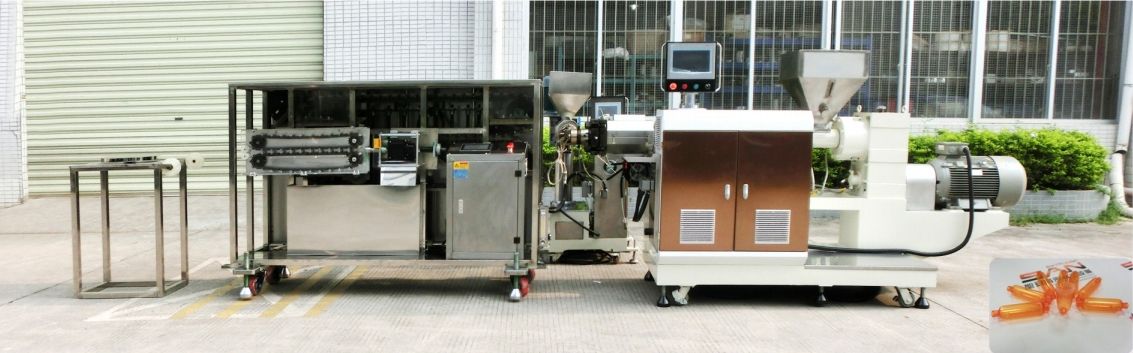

Two/Three Layers of Medical Light-proof infusion Tube Extrusion Line

This series of equipment adopts two machines co extrusion structure based on characteristics of light-proof tube, which consists of three layers or two layers of coextrusion dedicated die, vacuum forming cooling tank, servo haul off and cutting machine and belt conveyor

This series of equipment adopts two machines co extrusion structure based oncharacteristics of light-proof tube, which consists of three layers or two layers ofcoextrusion dedicated die, vacuum forming cooling tank, servo haul off andcutting machine and belt conveyor.

Customer can choose online track outsidediameter gauge. High efficient plastification and precise control of die and flowenable light proof tube to bond well.

This equipment with replacement of specialmold can suitable for OD20 double-layer coextrusion flat mouth drippingbucket(inner layer thickness is 0.2mm~ 0.25mm, the outer layer thickness is 0.65mm ~0.7 mm), Avoid adjustment mold structure, inner and outer layeruniform distribution, mold flowing channel with no dead Angle, quick andconvenient dismantle,improve production efficiency.
Applicable tube diameter: OD1.5-0D20mm
Applicable materials: PVC compounds, PVC light-proof compounds and TPU,TPE compounds for medical application.
